訪問者模式 Visitor Pattern

目的#

定義能逐一施行於物件結構裡各個元素的操作，讓你不必修改作用對象的類別介面，就能定義新的操作；將操作集中到物件結構上，以讓它們能獨立變化，但仍以多型方式進行。

適用#

物件結構含有許多介面各異的類別，希望能依據物件的實體類別來執行對應的動作時。需要對整個物件結構體系執行各種互不相干的操作，不會造成干擾。物件結構的類別不常變動，但施於其上的操作卻常有增減時。

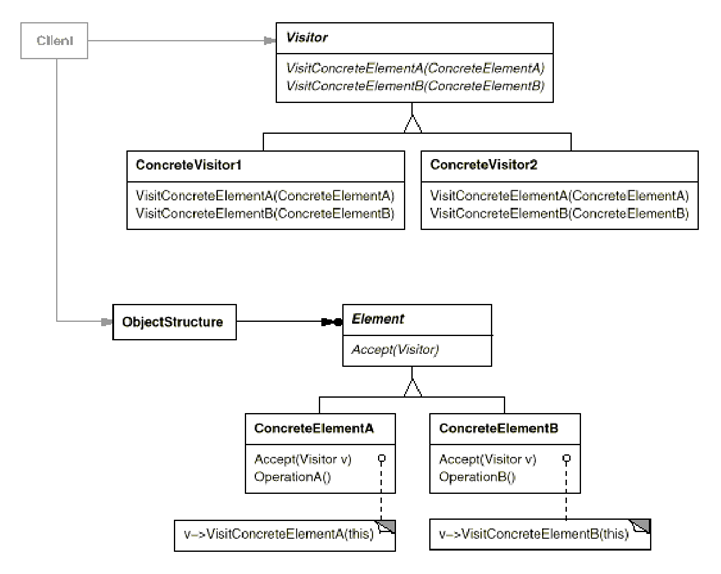

結構及成員#

Collaborations: Client先建立一個ConcreteVisitor物件，再於巡訪物件結構的過程中，將Visitor物件餵給每一個遇到的Element。 Element被巡訪到時，會呼叫Visitor相對應的操作，如有必要，也會把自己列入參數傳送過去讓Visitor存取。

Visitor: like the NodeVisitor替每一種ConcreteElement制訂對應的Visit()方法。Visitor藉由方法的名字和簽名（Sinature）（多型）區分是哪個ConcreteElement送過來的訊息。將訊息轉傳給ConcreteVisitor。ConcreteVisitor: like the TypeCheckingVisitor, SpellingVisitor具體實作出Visitor。演算法可從ConcreteVisitor得知目前的Context，在整個巡訪過程中均可在此儲存局部狀態以累積資訊。Element: like the Glyph, Node宣告以Visitor物件當參數的Accept()介面。ConcreteElement: like the Row, Column, Text, Image, etc.具體實作出Accept()方法。Client:可巡訪整群Element物件。可提供高階介面讓Visitor巡訪Element。可以是Composite，也可以是容器（List、Set）。

影響結果#

好處#

容易增添新的操作，新增一個Visitor即可新增操作。每一種Visitor都將相關操作集中起來，將無關的摒除在外。處理不同的類別階層, Iterator只能巡訪Item或Item的子類別，而Visitor只要把相關類別寫入方法，就沒有巡訪限制。累積狀態。Visitor可在拜訪物件結構各個元素時順便累積狀態。

壞處#

難以增添新的ConcreteElement類別。Visitor可能會迫使ConcreteElement公開一些可存取的Element內部狀態，破壞封裝。

實作#

雙重分派（Double Dispatch）？#

在單一分派程式語言，呼叫哪個Overload方法，由方法呼叫者和方法參數共同在執行期間依靜態類別決定。如：以下程式碼所有的ride()出來都會是「騎馬」，因為他們的靜態類別都是Horse。

1
public class Mozi {
2
    public void ride(Horse h){ System.out.println("騎馬"); }
3
    public void ride(WhiteHorse wh){ System.out.println("騎白馬"); }
4
    public void ride(BlackHorse bh){ System.out.println("騎黑馬"); }
5

6
    public static void main(String[] args) {
7
        Horse wh = new WhiteHorse();
8
        Horse bh = new BlackHorse();
9
        Mozi mozi = new Mozi();
10
        mozi.ride(wh);
11
        mozi.ride(bh);
12
    }
13
}

但JAVA可以透過Override實作動態分派

1
public class Horse {
2
    public void ride(){ System.out.println("騎馬"); }
3
}
4
public class WhiteHorse extends Horse {
5
    public void ride(){ System.out.println("騎白馬"); }
6
}
7
public class BlackHorse extends Horse {
8
    public void ride(){ System.out.println("騎黑馬"); }
9
}
10
public class Mozi {
11
    public static void main(String[] args) {
12
        Horse wh = new WhiteHorse();
13
        Horse bh = new BlackHorse();
14
        wh.ride();
15
        bh.ride();
16
    }
17
}

Visitor模式將真正會啟用的操作，依Visitor的型別和作用對象的型別決定，不用把靜態操作繫結在Element介面裡。

誰負責巡訪物件結構？#

有三種角色可以幫Visitor一一拜訪物件結構裡的每一個元素：物件結構、Visitor物件、Iterator物件。

Example: Liquor#

1
//Interface: Visitable
2
package liquor;
3

4
interface Visitable {
5

6
  public double accept(Visitor visitor);
7

8
}

1
//Class: Liquor
2
package liquor;
3

4
class Liquor implements Visitable {
5

6
  private double price;
7

8
  Liquor(double item) {
9
    price = item;
10
  }
11

12
  public double accept(Visitor visitor) {
13
    return visitor.visit(this);
14
  }
15

16
  public double getPrice() {
17
    return price;
18
  }
19

20
}

1
//Class: Necessity
2

3
package liquor;
4
class Necessity implements Visitable {
5

6
  private double price;
7

8
  Necessity(double item) {
9
    price = item;
10
  }
11

12
  public double accept(Visitor visitor) {
13
    return visitor.visit(this);
14
  }
15

16
  public double getPrice() {
17
    return price;
18
  }
19

20
}

1
//Class: Tobaco
2

3
package liquor;
4
class Tobacco implements Visitable {
5

6
  private double price;
7

8
  Tobacco(double item) {
9
    price = item;
10
  }
11

12
  public double accept(Visitor visitor) {
13
    return visitor.visit(this);
14
  }
15

16
  public double getPrice() {
17
    return price;
18
  }
19

20
}

1
//Interface: Visitor
2

3
package liquor;
4

5
interface Visitor {
6

7
  public double visit(Liquor liquorItem);
8

9
  public double visit(Tobacco tobaccoItem);
10

11
  public double visit(Necessity necessityItem);
12

13
}

1
//Class: TaxVisitor
2

3
package liquor;
4

5
import java.text.DecimalFormat;
6

7
class TaxVisitor implements Visitor {
8

9

10
  DecimalFormat df = new DecimalFormat("#.##");
11

12
  public TaxVisitor() {
13
  }
14

15
  public double visit(Liquor liquorItem) {
16
    System.out.println("Liquor Item: Price with Tax");
17
    return Double.parseDouble(df.format((liquorItem.getPrice() * .18) + liquorItem.getPrice()));
18
  }
19

20
  public double visit(Tobacco tobaccoItem) {
21
    System.out.println("Tobacco Item: Price with Tax");
22
    return Double.parseDouble(df.format((tobaccoItem.getPrice() * .32) + tobaccoItem.getPrice()));
23
  }
24

25
  public double visit(Necessity necessityItem) {
26
    System.out.println("Necessity Item: Price with Tax");
27
    return Double.parseDouble(df.format(necessityItem.getPrice()));
28
  }
29

30
}

1
//Class: TaxHolidayVisitor
2

3

4
package liquor;
5
import java.text.DecimalFormat;
6

7
class TaxHolidayVisitor implements Visitor {
8

9
    DecimalFormat df = new DecimalFormat("#.##");
10
  public TaxHolidayVisitor() {
11
  }
12

13
  public double visit(Liquor liquorItem) {
14
    System.out.println("Liquor Item: Price with Tax");
15
    return Double.parseDouble(df.format((liquorItem.getPrice() * .10) + liquorItem.getPrice()));
16
  }
17

18
  public double visit(Tobacco tobaccoItem) {
19
    System.out.println("Tobacco Item: Price with Tax");
20
    return Double.parseDouble(df.format((tobaccoItem.getPrice() * .30) + tobaccoItem.getPrice()));
21
  }
22

23

24
  public double visit(Necessity necessityItem) {
25
    System.out.println("Necessity Item: Price with Tax");
26
    return Double.parseDouble(df.format(necessityItem.getPrice()));
27
  }
28

29
}

1
//Class: VisitorTest
2

3
package liquor;
4
public class VisitorTest {
5
  public static void main(String[] args) {
6

7
    TaxVisitor taxCalc = new TaxVisitor();
8
    TaxHolidayVisitor taxHolidayCalc = new TaxHolidayVisitor();
9

10
    Necessity milk = new Necessity(3.47);
11
    Liquor vodka = new Liquor(11.99);
12
    Tobacco cigars = new Tobacco(19.99);
13

14
    System.out.println(milk.accept(taxCalc) + "\n");
15
    System.out.println(vodka.accept(taxCalc) + "\n");
16
    System.out.println(cigars.accept(taxCalc) + "\n");
17

18
    System.out.println("TAX HOLIDAY PRICES\n");
19

20
    System.out.println(milk.accept(taxHolidayCalc) + "\n");
21
    System.out.println(vodka.accept(taxHolidayCalc) + "\n");
22
    System.out.println(cigars.accept(taxHolidayCalc) + "\n");
23

24
  }
25
}

1
Result:
2

3
Necessity Item: Price with Tax
4
3.47
5

6
Liquor Item: Price with Tax
7
14.15
8

9
Tobacco Item: Price with Tax
10
26.39
11

12
TAX HOLIDAY PRICES
13

14
Necessity Item: Price with Tax
15
3.47
16

17
Liquor Item: Price with Tax
18
13.19
19

20
Tobacco Item: Price with Tax
21
25.99
